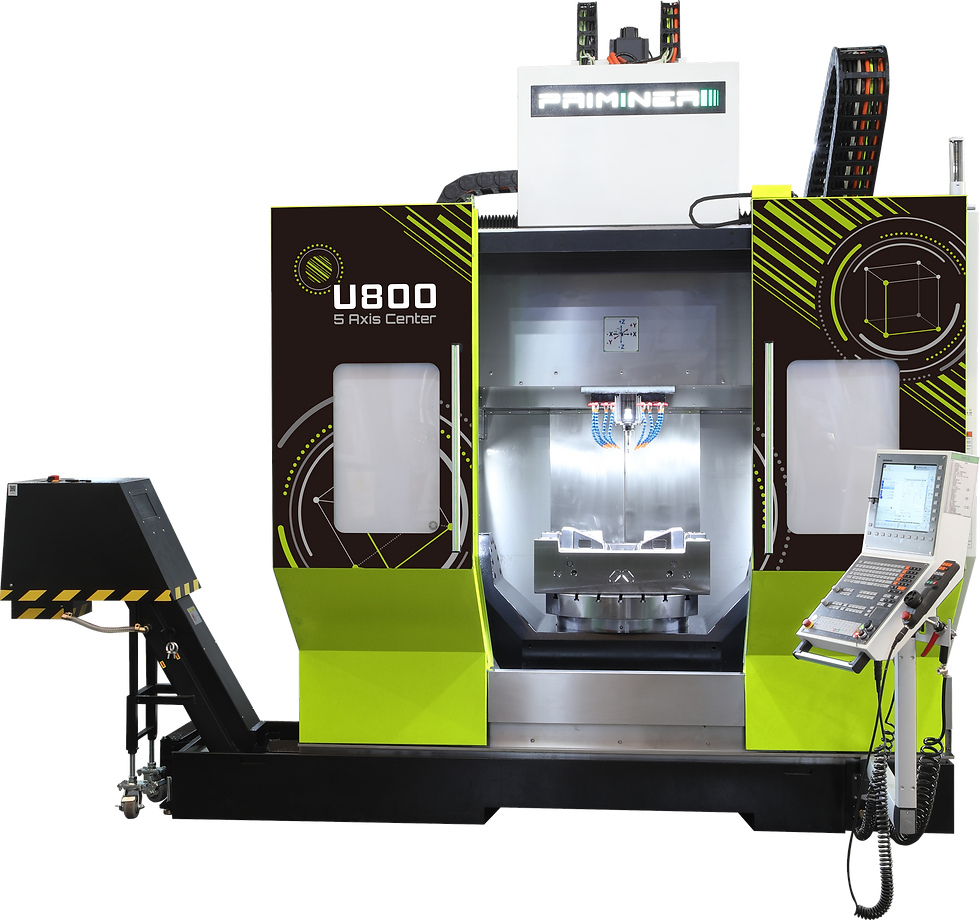

U800-5X
Gantry-type Machining Center
• One piece high quallity casting bed
• Gantry-type structure design
• A/C axes support a maximum load 1,200 kg( U800)/800 kg (U800T)
• The A/C axis adopts DD motor direct drive technology, A axis is driven by dual DD motors
• Germany pneumatic brakes, A-axis bralking torque 9,360 Nm
• Maximium travel up to 1,000 mm
Standard Configuration
• Built-in spindle HSK A63 16,000 rpm 30/36kW 100/120 Nm (SIEMENS/HEIDENHAIN)
• Built-in spindle HSK T63 15,000 rpm 30/36kW 100/120 Nm (SIEMENS/ HEIDENHAIN) (U800T)
• Direct drive rotary table
• A axis with single direct drive
• Y axis with dual direct drive
• Sealed linear scales an X/Y/Z axis
• Rotary encoder an A/C axes
• Full enclosed splash guard
• 60 pockets chain type tool changer,HSK A63
• Chain type chip conveyor
• High precision spindle water cooler
• Coolant system
• Air blast during cutting
• Air-condition electrical cabinet
• Rigid tapping
• Centralized automatic grease lubrication system
• LED working lamp
• End of program light
• Electrical handwheel (MPG)
• Tool box
• Leveling bolts and blocks
• Coolant gun
• Air gun
• User Manual [mechanical+electrical partsl
• Ethernet, CF card and USB interface
Optional Configuration
• Built-in spindle HSK A63 20,000 rpm 30/36kW 72/86 Nm (SIEMENS/HEIDENHAIN)
• Built-in Spindle HSK A100 10,000 rpm 54/65kW 300/360 Nm (SIEMENS/HEIDENHAIN)
• 90 pockets tool changer, HSK A63/HSK T63 (U800T)
• 48 pockets tool changer, HSK A100/HSK T100 (U800T)
• Oil cooling through ballscrew
• CTS coolant through spindle + ATS
• Minimum quantity lubrication system
• Coolant cooling system
• Workpiece probe
• Tool probe
• Oil mist collector
• Oil skimmer
• Dynamic Collision Monitoring (DCM)
• Klnematics
• Extra 200 GB SSD program memory (only available on SIEMENS)
Technical details
Table
Max. workpiece diameter
Table Size
T slot (width x distance x number)
Max. load
Travel
X/Y/Z travel
A/C Travel
Spindle
Spindle taper
Spindle motor power
Spindle motor torque
Spindle speed
Spindle nose to table
Feed
Rapid feed X/Y/Z
Rotation speed A/C
Control System
CNC control
U800-5X
⌀1,000 x 7000 mm
⌀800 x 700 mm
14 mm x 100 mm x 7
1,200 kg
1,000/1,100/600 mm
+30° ~ -110°/±360°
HSK A63
30/36 kW
100/120 Nm
16,000 rpm
180 ~ 780 mm
48/48/24 m/min (opt 24/24/24 m/min) 100/100 rpm
Siemens/Heidenhain
U800T-5X
⌀1,000 x 700 mm
⌀800 mm
14 mm x 8
800 kg
1,000/1,100/600 mm
+30° ~ -110°/±360°
HSK T63
30/36 kW
100/120 Nm
15,000 rpm
233 ~ 833 mm
48/48/24 m/min (opt 24/24/24 m/min) 100/1,000 rpm
Siemens/Heidenhain
